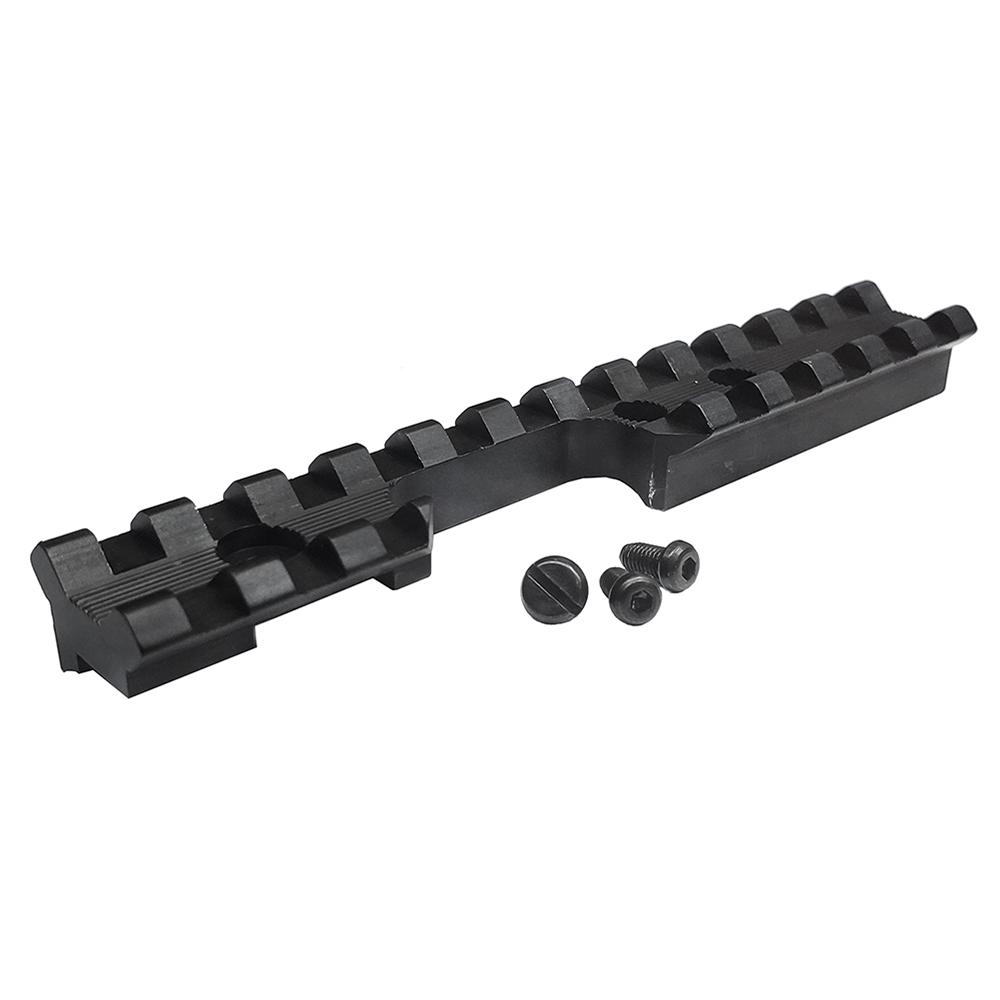

Crickettinny Rail 1-Piece Rifle Scope Mount

This upgraded Picatinny style mount provides a longer mounting surface to utilize larger scopes or “red dot” style optics.

• Picatinny Style mount that accepts any weaver or picatinny style rings.
• Total length – 4 7/8"
• utilizes the same mounting procedure as the standard Crickett scope mount
• includes mounting screws
• does not accept 3/8" dovetail rings (Use KSA031 SCOPE MOUNT KIT with KSA054 CRICKETT SCOPE)

NOT COMPATABLE with KSA054 CRICKETT 4 X 32 SCOPE

Installation Instructions:

• Remove the two 6×48 plug screws on the front of the receiver and the 6×32 screw and rear sight aperture from the rear sight elevation bar.
• Loosen the rear sight elevation screw (on side of the receiver.)
• Place mount base in position and start the two front 6×48 screws and one rear 6×32 screw.
• Continue to fully tighten the front two screws. Then tighten the one rear screw.
• Maintain down pressure on mount and tighten the elevation screw.
• Install and tighten any weaver or picatinny style rings and scope of your choice.
